How 10 electrodes produce a 12-lead ECG
A simple explanation of how the 12 leads of a transthoracic ECG are created.

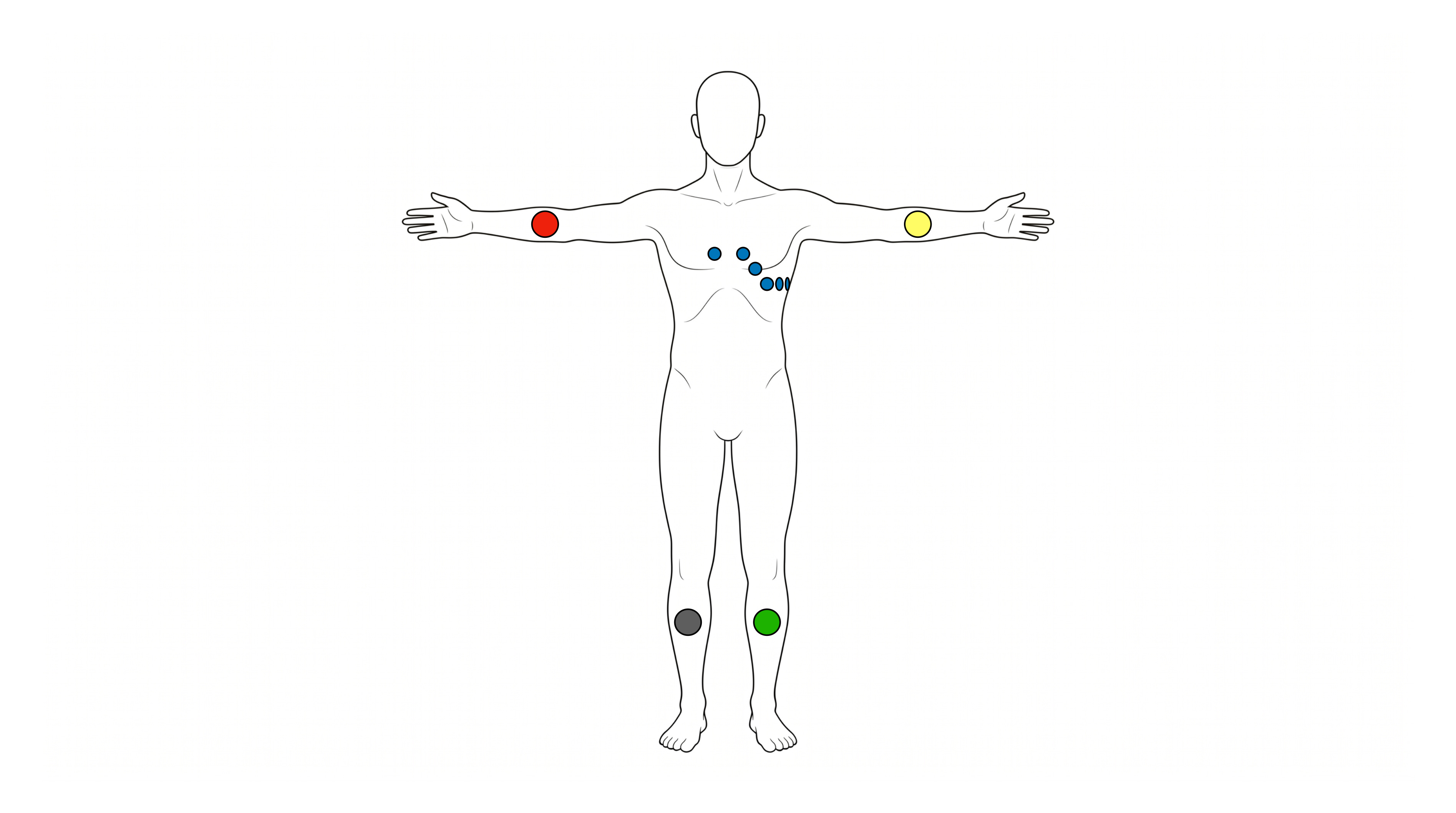

You place 10 electrodes on the body. The ECG prints out 12 leads.
One electrode (the right leg) is wired as a ground (neutral); it doesn’t contribute to the recording. So you really have 9 active electrodes producing 12 leads.
How do 9 active electrodes produce 12 leads?
The single fact this is built on
A lead is the voltage difference between two points:
Each of those two points can be either a physical electrode (a real point on the patient) or a virtual reference point (a value calculated from physical electrodes).
The 12-lead ECG uses both. The virtual reference points are how 9 active electrodes give us 12 leads.

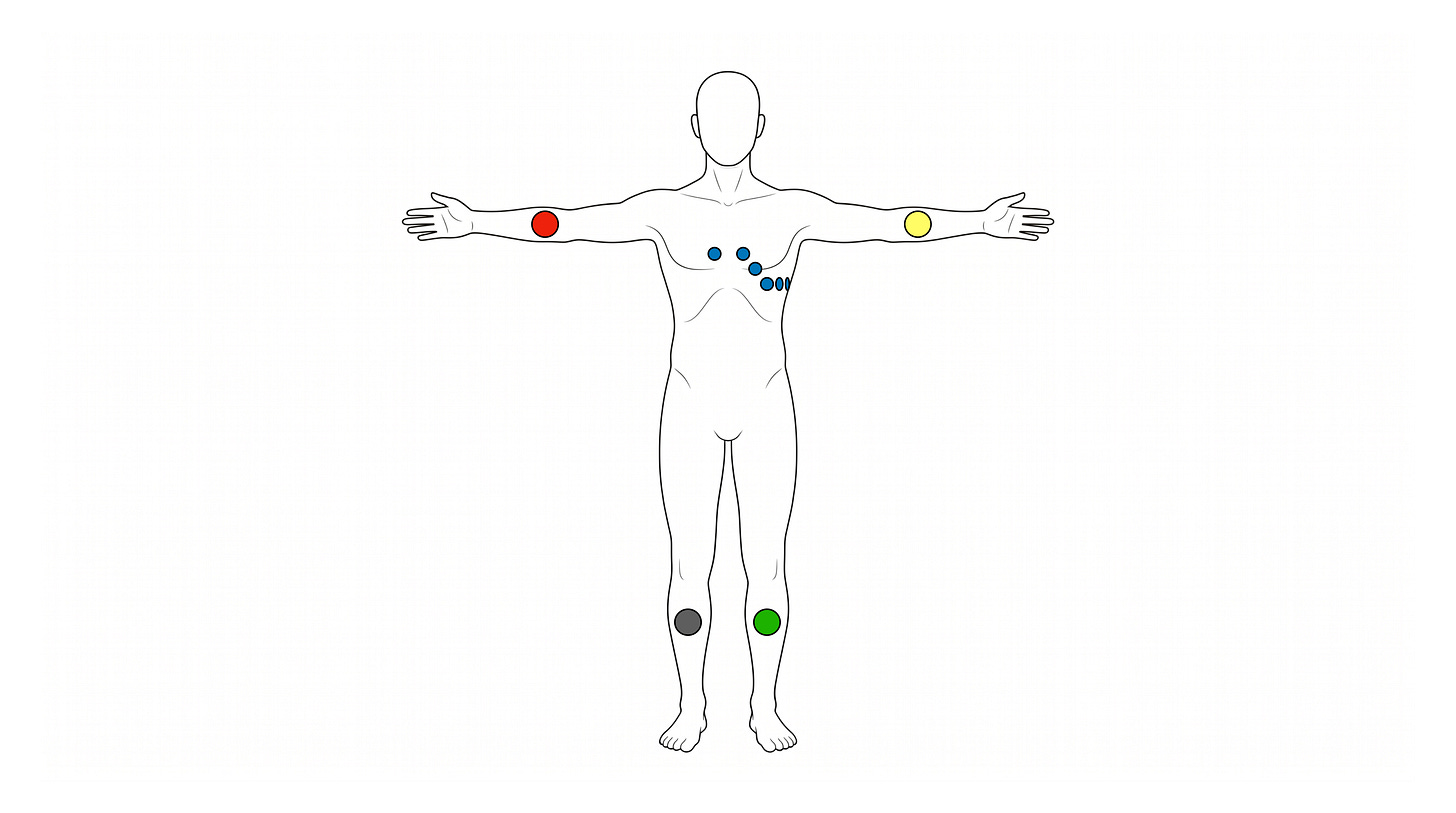

What the 10 physical electrodes produce
Four limb electrodes (one per limb), six chest electrodes (V1–V6). The right leg is the neutral electrode; it cancels noise but doesn’t record. That leaves:
3 active limb electrodes: right arm (RA), left arm (LA), left leg (LL)
6 active chest electrodes: V1–V6
Nine active points to work with.

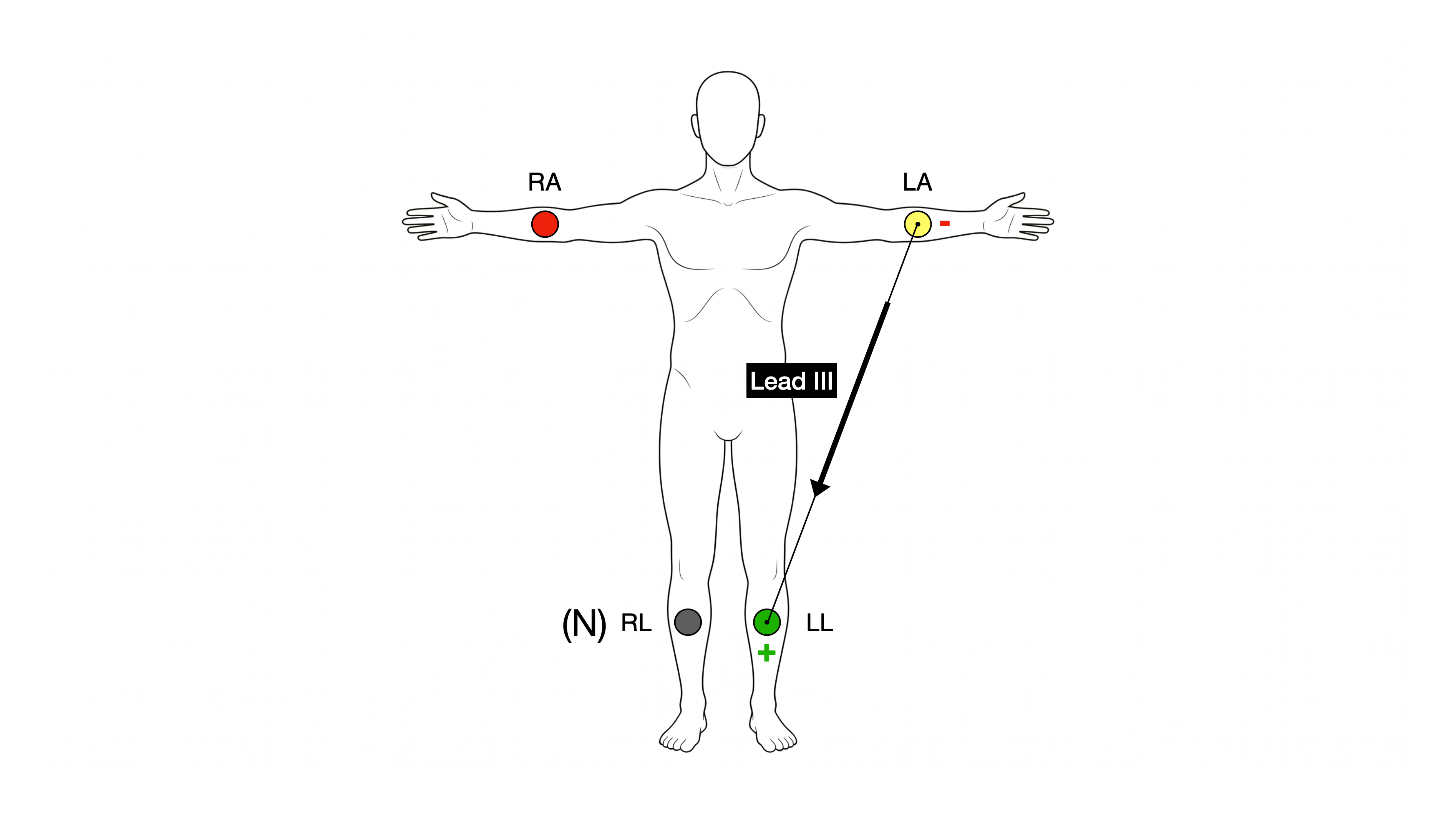

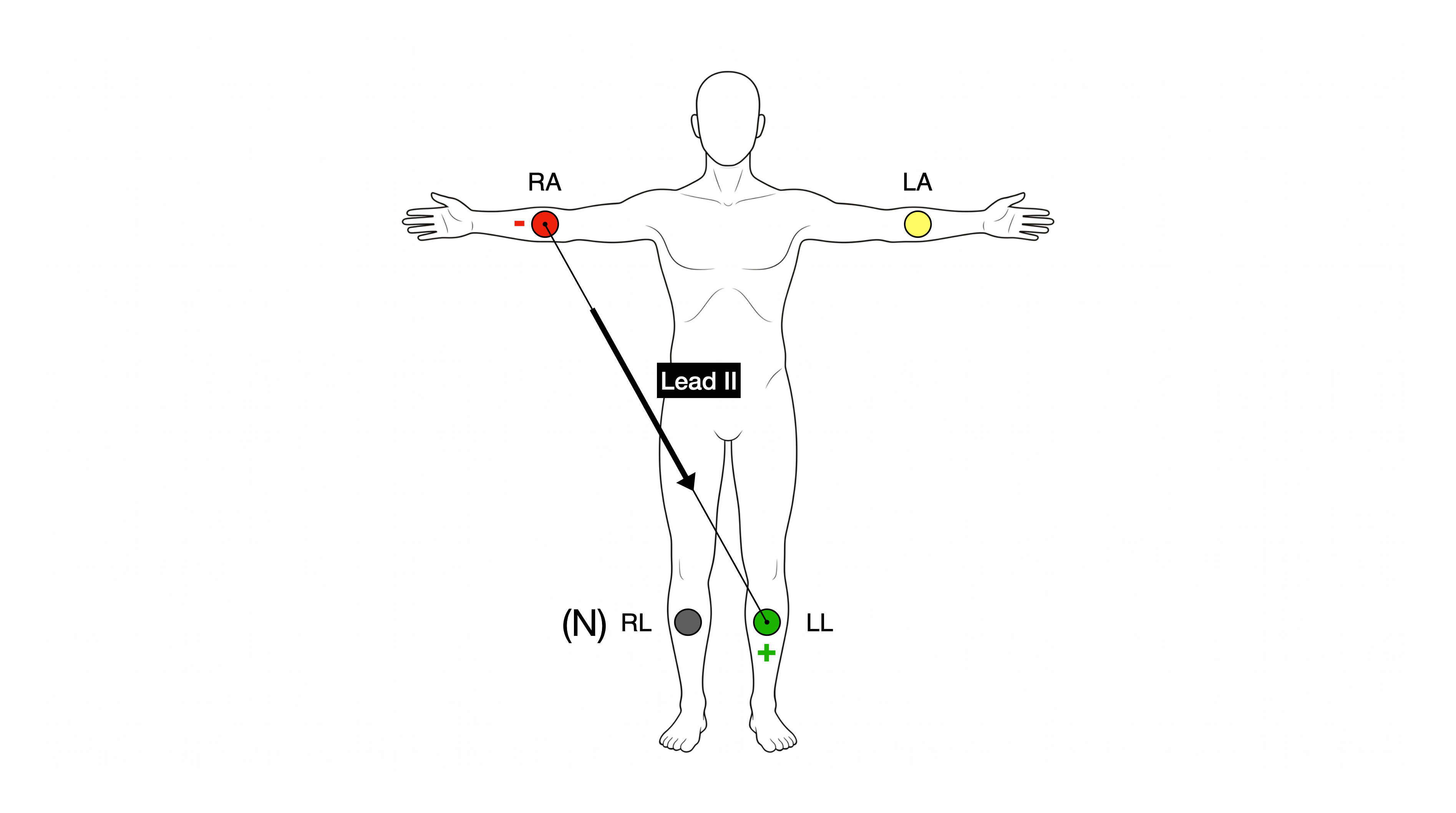

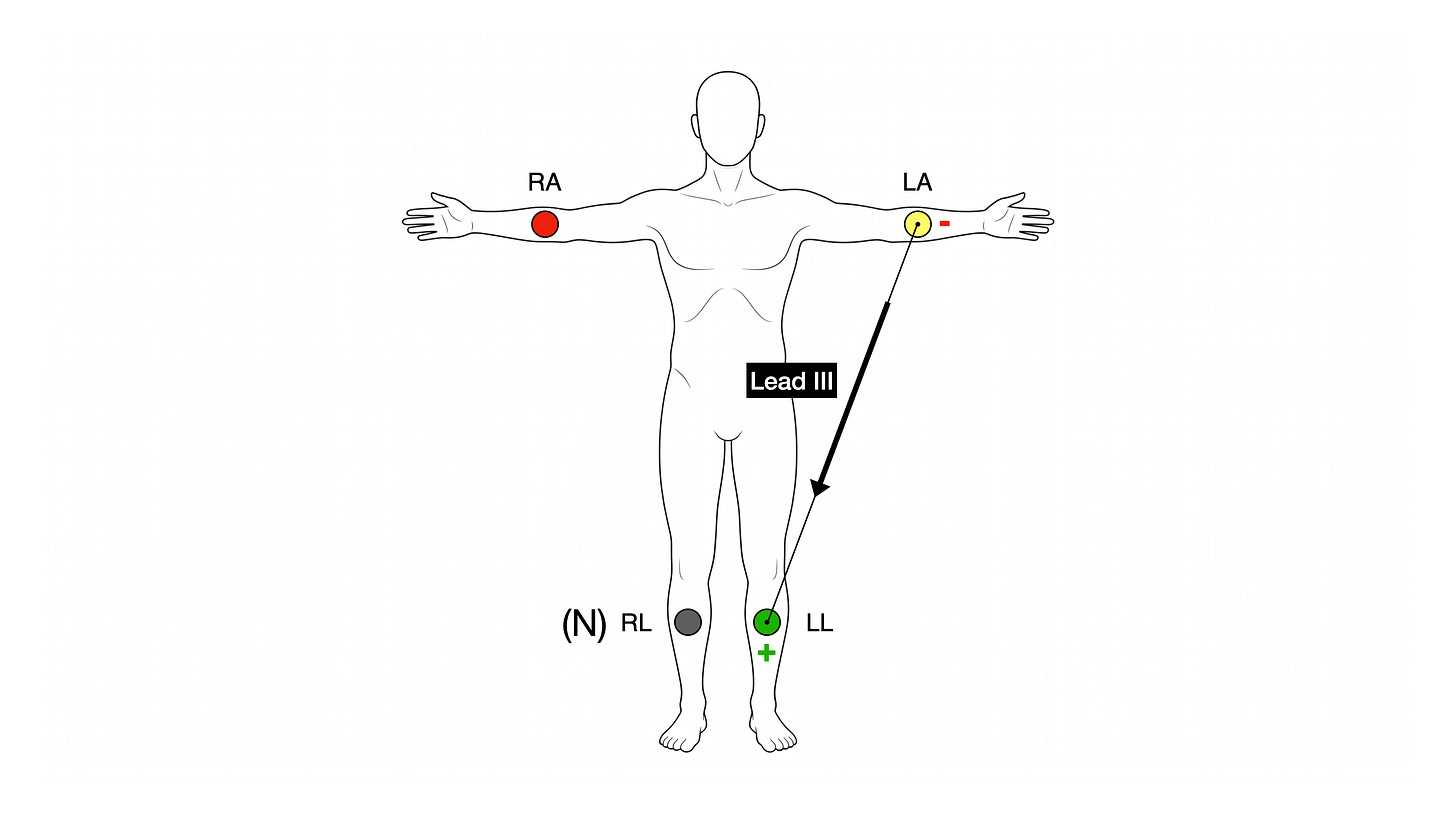

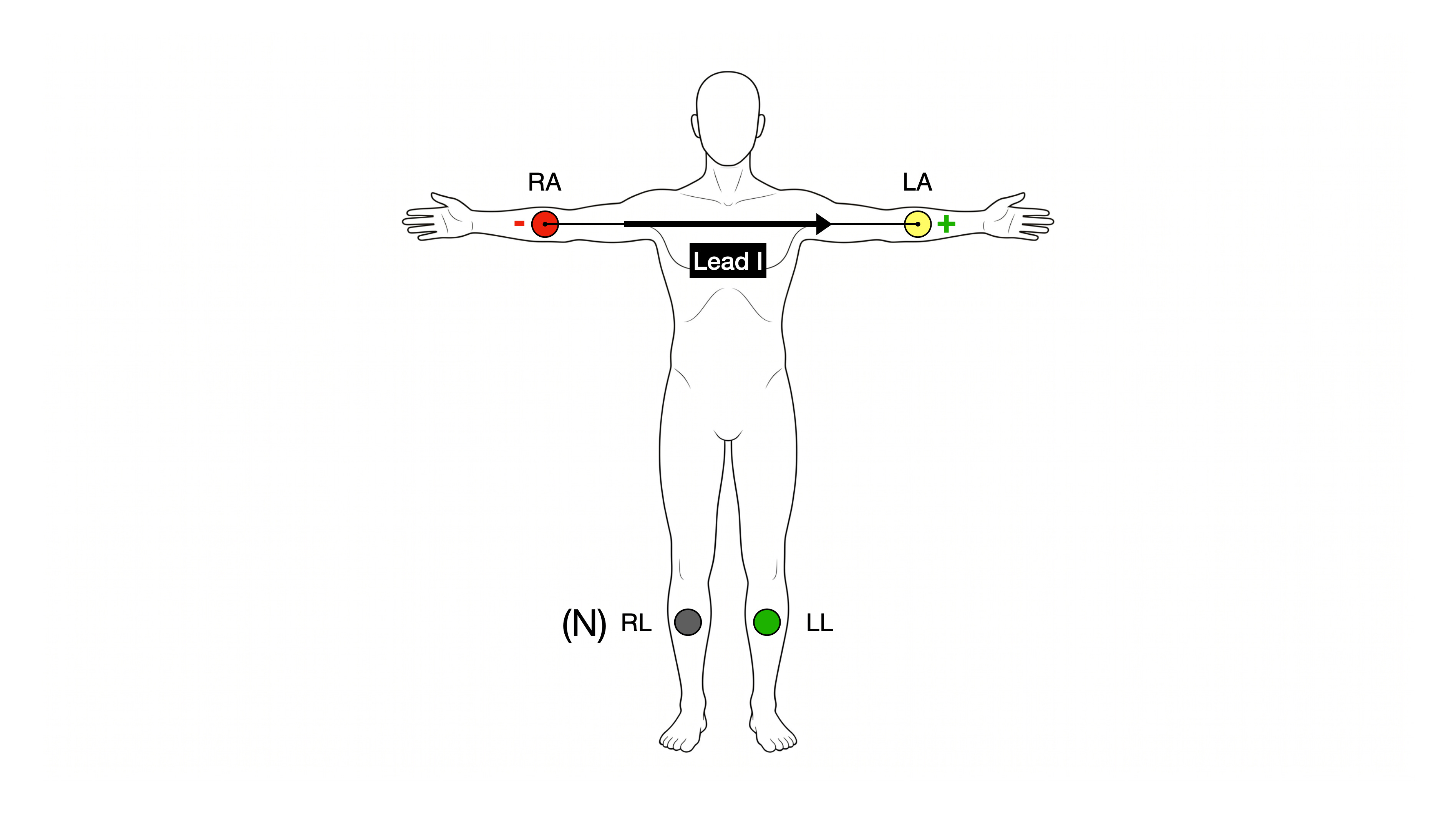

Bipolar limb leads: I, II, III
The simplest leads pair two physical electrodes. Let RA, LA, and LL stand for the electrical potentials at the right-arm, left-arm, and left-leg electrodes. Apply Lead = V(+) − V(−) to each pair:

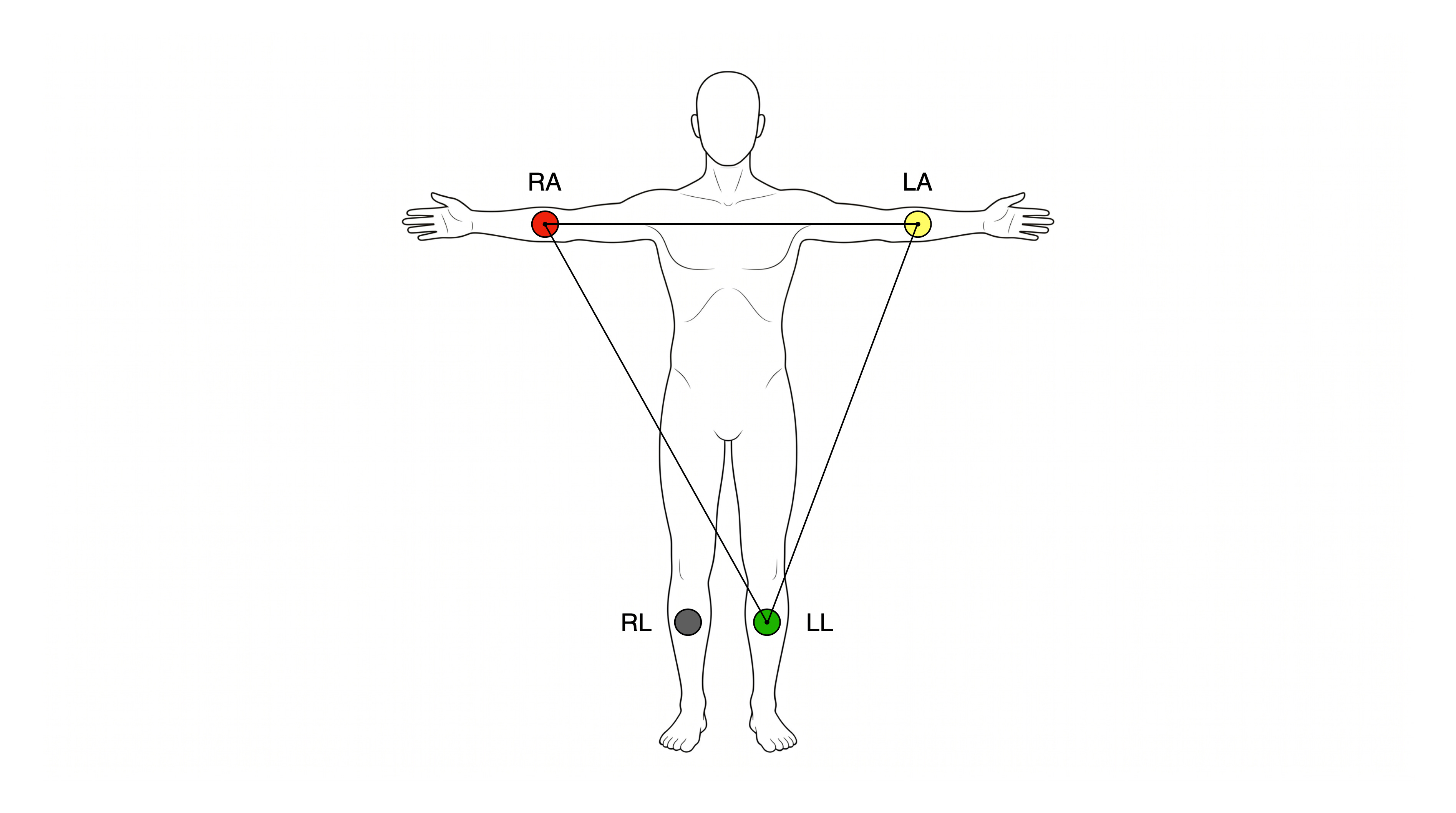

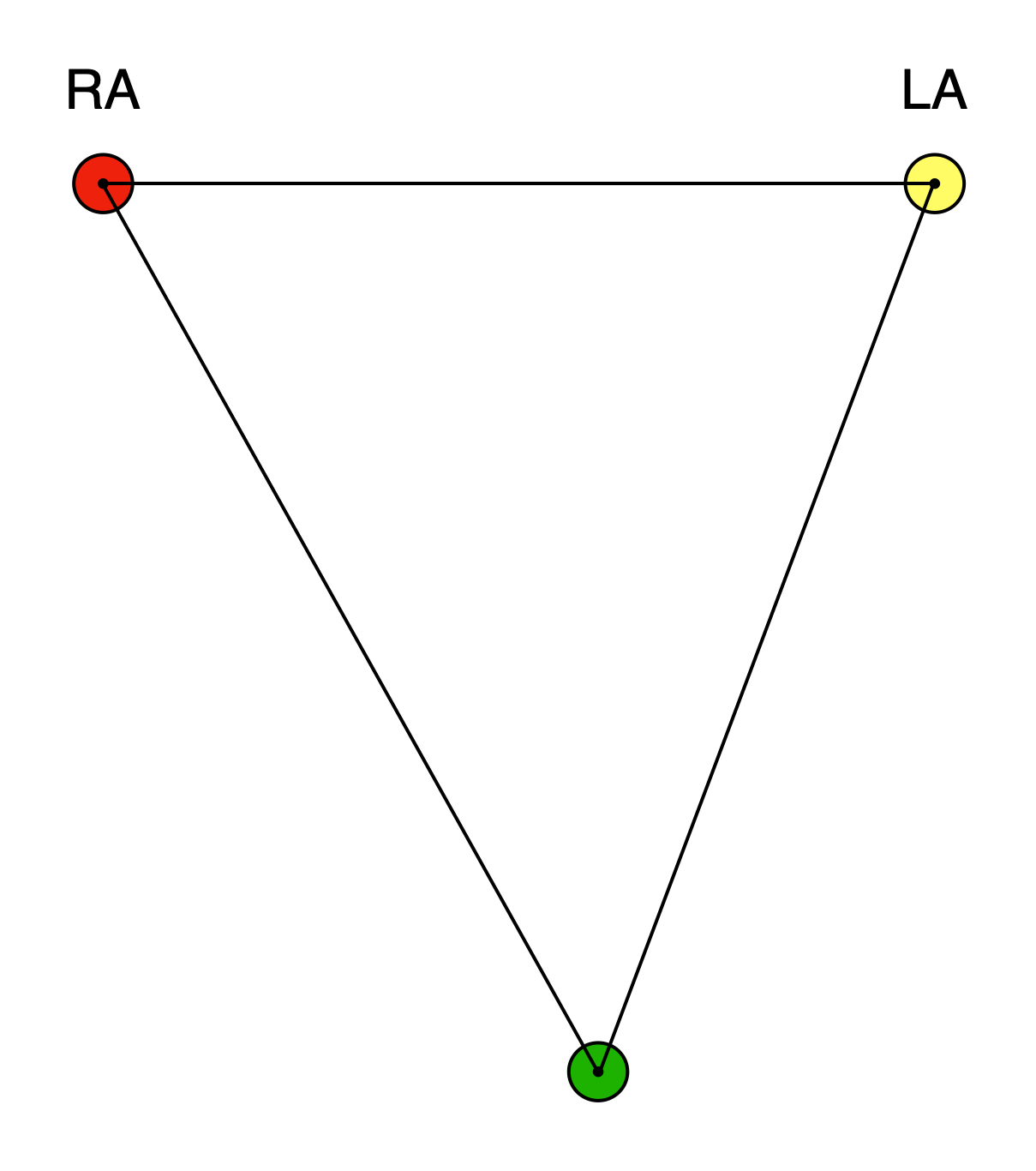

Both poles are physical electrodes, hence “bipolar”. The three leads form Einthoven’s triangle, named after Willem Einthoven (1860–1927), the Dutch physiologist who built the first practical electrocardiograph and won the 1924 Nobel Prize in Physiology or Medicine. The triangle views the heart in the coronal plane.
An interesting point
Add Lead I and Lead III:
This is Einthoven’s equation. It is a direct consequence of Kirchhoff’s voltage law: around any closed loop in a conductor, the sum of potential differences is zero.
The practical consequence: only two of the three bipolar limb leads carry independent information. Given any two, the third is fixed. A quick visual check on any 12-lead: the height of the R wave in Lead II is the sum of the R-wave heights in Leads I and III.

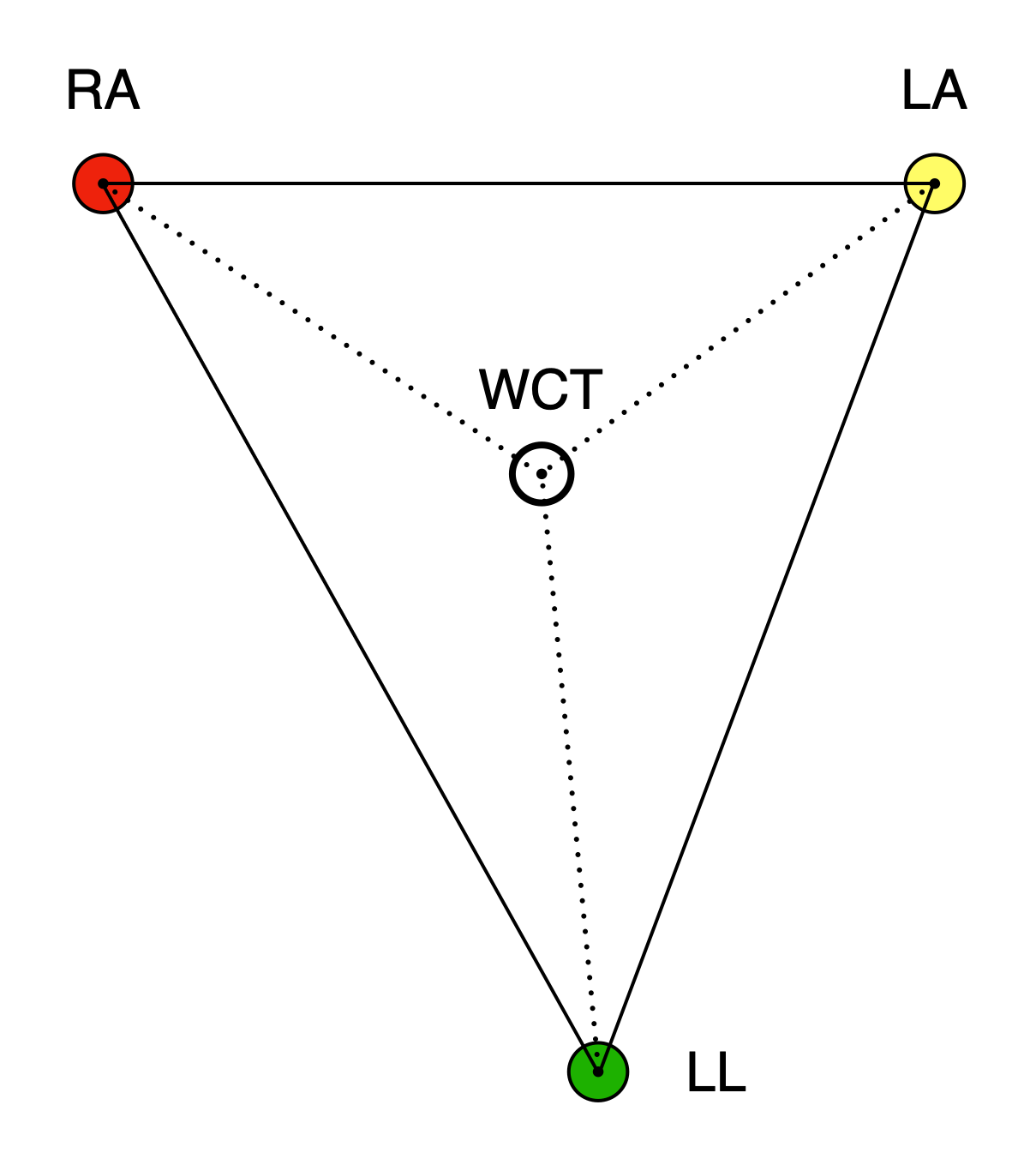

Wilson’s Central Terminal
To extract more leads, you need a stable reference point. In 1934, Frank N. Wilson and colleagues at the University of Michigan proposed connecting the three limb electrodes through equal resistors and averaging their potentials [1]:
This sits, geometrically, at the centre of Einthoven’s triangle. It is not a physical electrode; in modern machines it is computed.
Why is it useful? Picture the heart as a small electrical dipole sitting at the centre of Einthoven’s triangle. RA, LA, and LL are equidistant from it. Whatever positive voltage the dipole produces at one vertex is balanced by negative voltages at the other two — so the three potentials sum to approximately zero throughout the cardiac cycle:
This is Wilson’s Central Terminal (WCT): a calculated, near-zero reference built from the three limb electrodes.
With a near-zero reference in hand, you can pair any single electrode against the WCT and the resulting voltage approximates the absolute potential at that electrode rather than a difference against another arbitrary point. That is the definition of a unipolar lead.

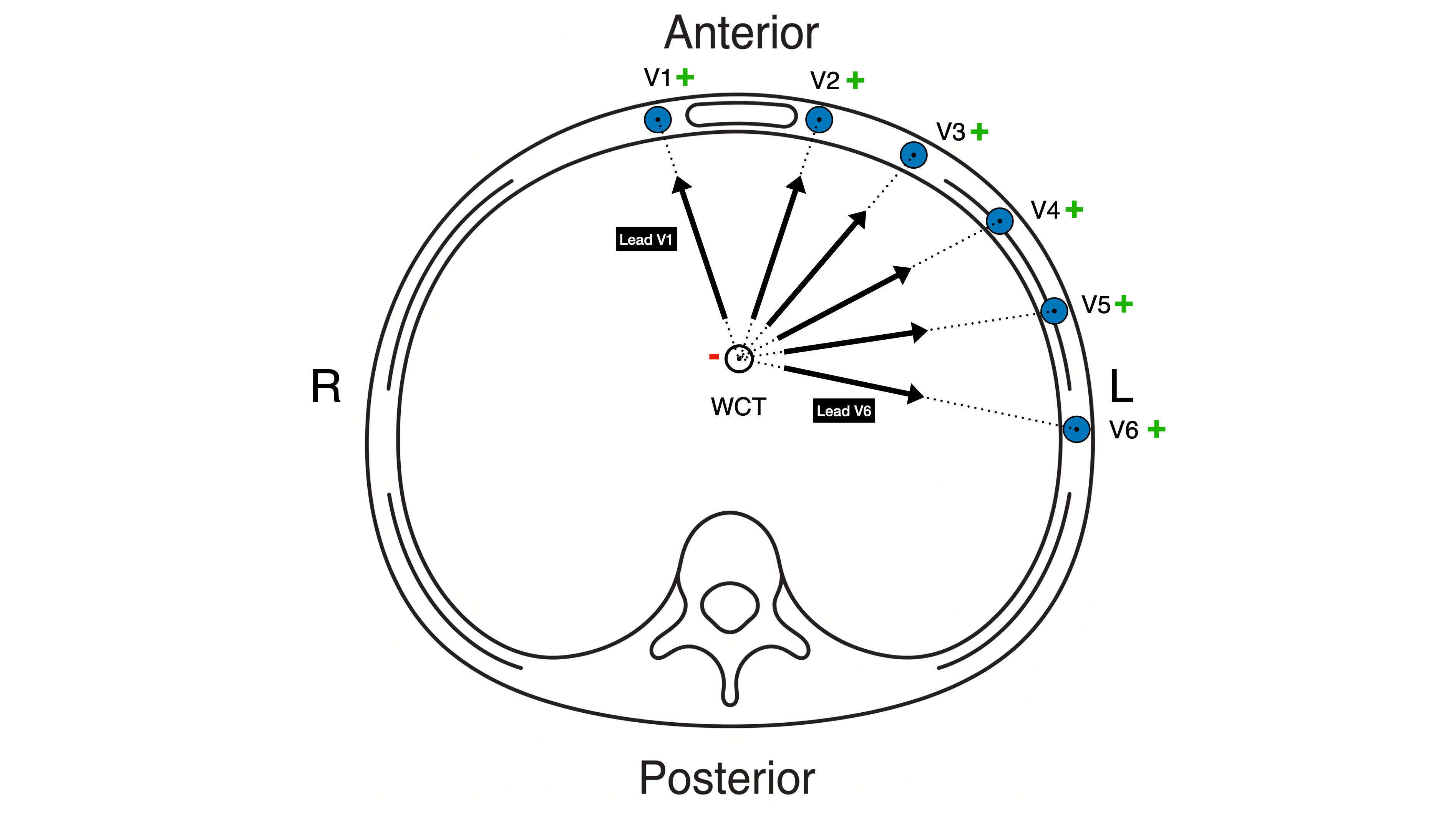

Precordial leads: V1–V6
The precordial leads are the cleanest application of the WCT. Each chest electrode is the (+) pole, the WCT is the (−) pole:
for n = 1, 2, 3, 4, 5, 6
V1: 4th intercostal space, right of sternum
V2: 4th intercostal space, left of sternum
V3: midway between V2 and V4
V4: 5th intercostal space, midclavicular line
V5: same level as V4, anterior axillary line
V6: same level as V4, midaxillary line
Six chest electrodes, each paired against the same virtual zero, give six leads viewing the heart in the transverse plane.
Three bipolar limb leads + six precordial leads = nine leads. Three to go.

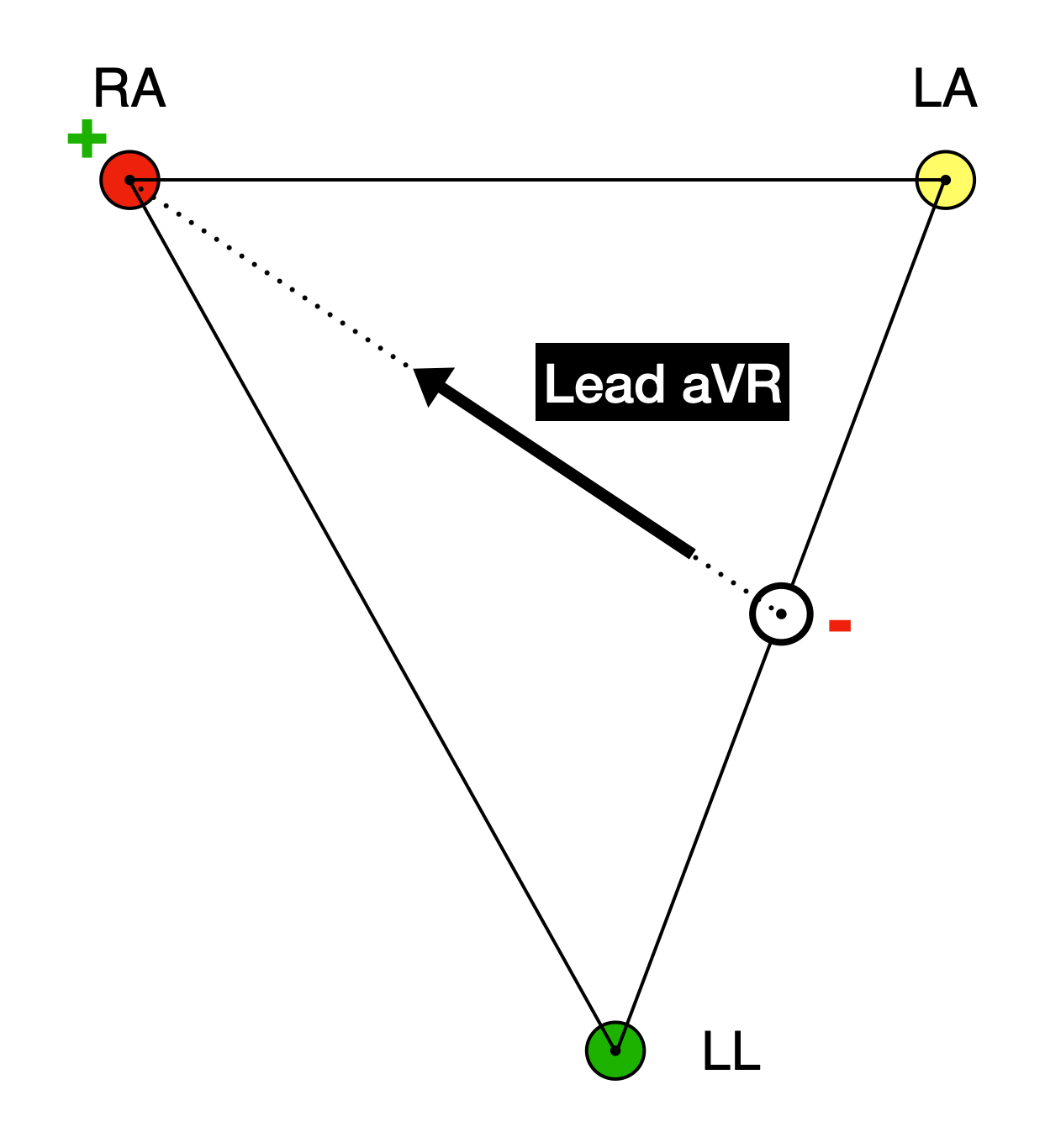

Augmented limb leads: aVR, aVL, aVF
You have three limb electrodes. You have already used them in pairs (I, II, III). To extract three more leads, you need a new reference for each one.

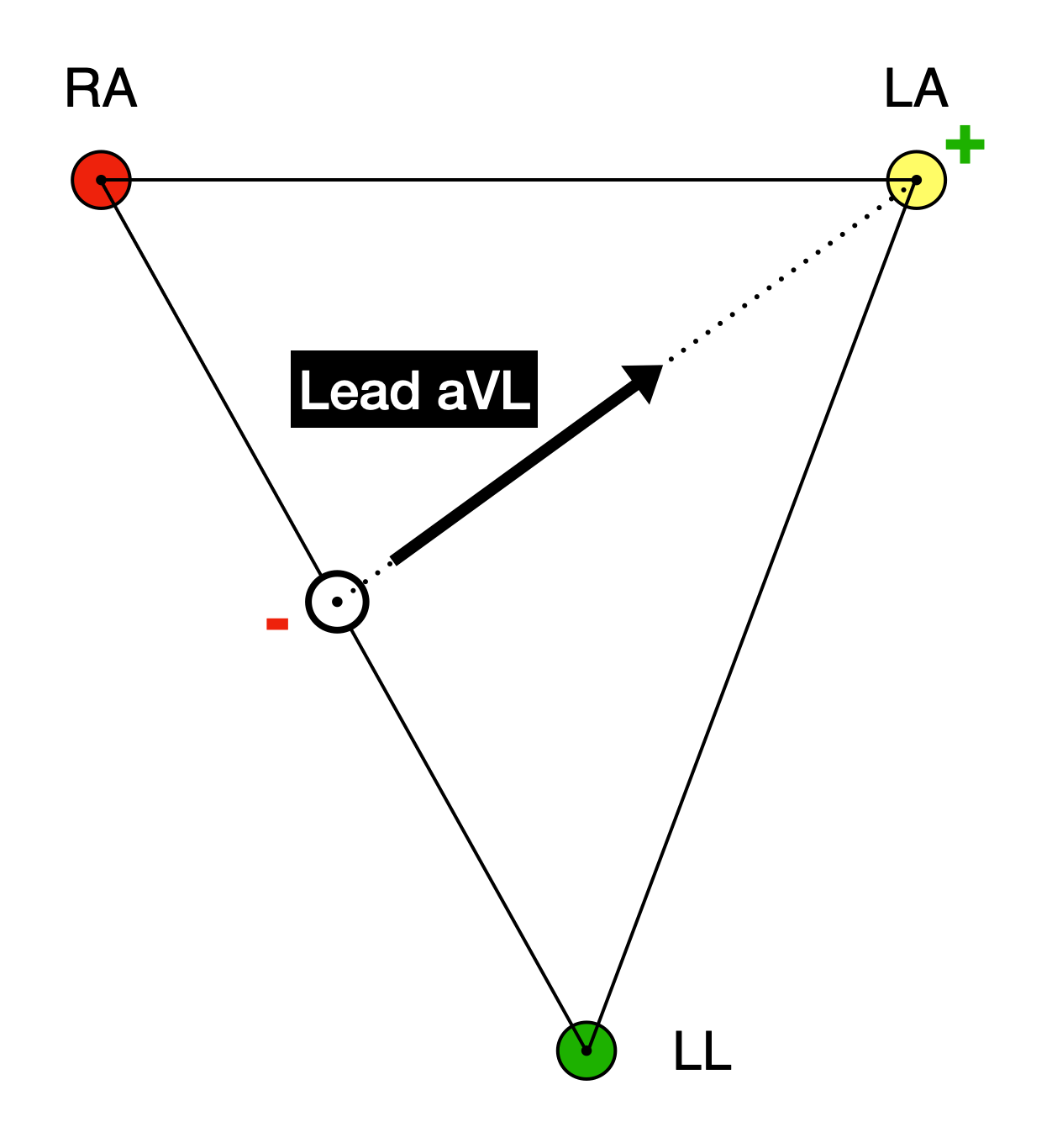

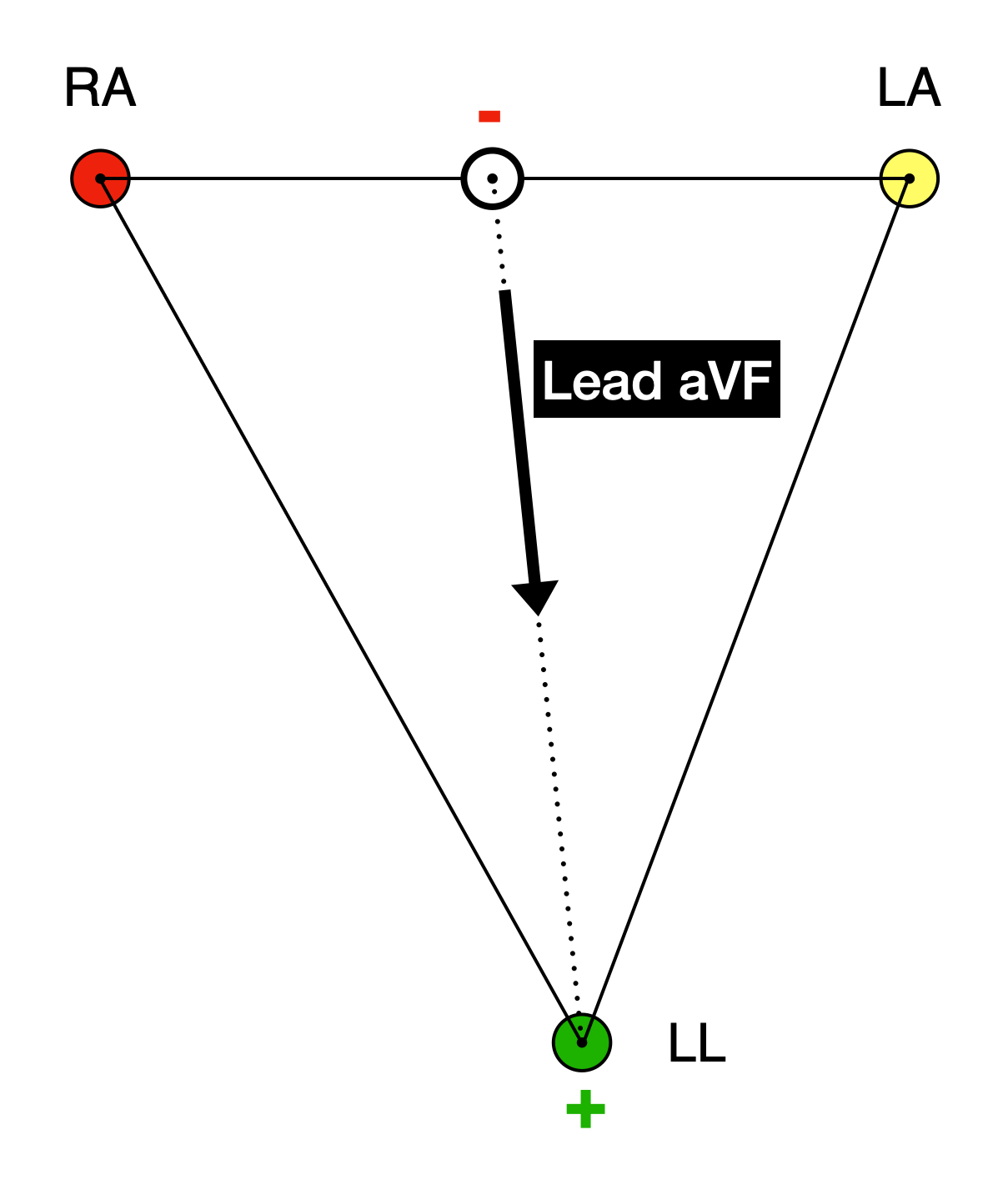

The convention [2]: each limb electrode takes a turn as the (+) pole, and the (−) pole is the average of the other two limb electrodes.
Geometrically, the (−) pole sits at the midpoint of the side opposite the exploring electrode.
Why not use the WCT here too? Wilson originally did [1]. Goldberger replaced it with the other two limb electrodes [2] because that makes the recorded signal 1.5× larger on the trace, hence “augmented”.
You might notice that aVF in these diagrams looks closer to +80° than the textbook +90°. That’s deliberate. The triangles here are not equilateral; real bodies aren’t symmetric, and the schematics reflect that. None of the algebra above depends on the triangle being equilateral. The exact +90° comes from an equilateral-triangle idealisation used in the hexaxial reference system.
Bringing it all together
That’s how we get a full view of the heart with a 12-lead ECG, using only 9 active electrodes. The secret is virtual reference points: Wilson’s Central Terminal for the precordial leads, and the average of the other two limb electrodes for the augmented limb leads.
References
[1]: Frank N. Wilson, Franklin D. Johnston, A.Garrard Macleod, Paul S. Barker, Electrocardiograms that represent the potential variations of a single electrode, American Heart Journal, Volume 9, Issue 4, 1934, Pages 447-458, ISSN 0002-8703, https://doi.org/10.1016/S0002-8703(34)90093-4. (https://www.sciencedirect.com/science/article/pii/S0002870334900934)
[2]: Emanuel Goldberger, A simple, indifferent, electrocardiographic electrode of zero potential and a technique of obtaining augmented, unipolar, extremity leads, American Heart Journal, Volume 23, Issue 4, 1942, Pages 483-492, ISSN 0002-8703, https://doi.org/10.1016/S0002-8703(42)90293-X. (https://www.sciencedirect.com/science/article/pii/S000287034290293X)
Further reading
Goldberger AL, Goldberger ZD, Shvilkin A. Goldberger’s Clinical Electrocardiography: A Simplified Approach. 10th ed. Elsevier; 2024.
Lilly LS. Pathophysiology of Heart Disease. 7th ed. Wolters Kluwer; 2021.
Prutkin JM, Goldberger AL. ECG tutorial: Electrical components of the ECG. UpToDate, Waltham, MA.
